仕様
Overview
Interface
SATA III/6.0Gbps
Flash Technology
pSLC (MLC)
Capacity
16GB ~ 512GB
Form Factor

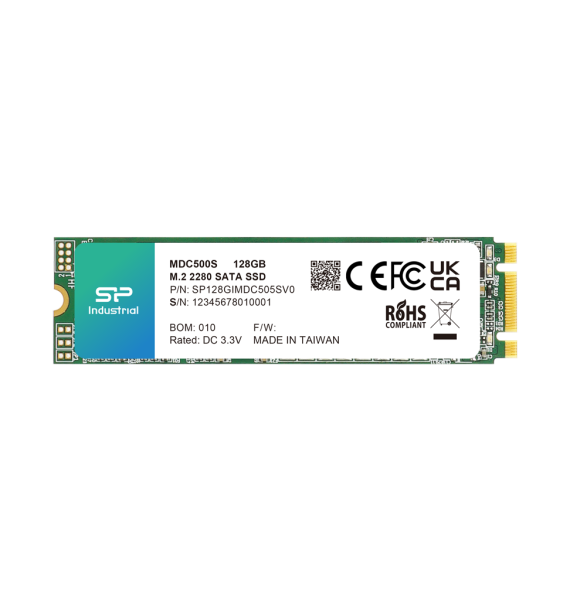

M.2 2280 (B+M key)
Dimensions
80.0 x 22.0 x 3.5
DRAM
Yes
Performance
Seq. Performance Read (max.)
560 MB/s
Seq. Performance Write (max.)
520 MB/s
Random 4K Read (IOPS max.)
89,000
Random 4K Write (IOPS max.)
88,000
MTBF @ 25°C
>3,000,000 hrs
P/E Cycle
20,000
TBW
512GB: 9,203 TB
256GB: 4,601 TB
128GB: 2,301 TB
64GB: 1,151 TB
32GB: 560 TB
16GB: 289 TB
256GB: 4,601 TB
128GB: 2,301 TB
64GB: 1,151 TB
32GB: 560 TB
16GB: 289 TB
Operating Environment
Operating Temperature
-40°C～85°C
Storage Temperature
-55°C～95°C
Operating Humidity
10%～95%
(30°C Max. Wet Bulb Temp)
(30°C Max. Wet Bulb Temp)
Vibration
20G, 10 ～ 2000Hz
Drop
75cm
Shock
1,500G@0.5ms
Power Consumption
Power Requirement
DC 5.0V
Power Operation (max.)
790 mA
Power Idle / Standby
90mA
Key Features
Advanced Power Shield
●
End-to-End Data Protection
●
AES-256
◎
Thermal Throttling
●
DEVSLP
●
S.M.A.R.T
●
Warranty
Warranty
5 years within TBW
ORDER INFORMATION
| Capacity | Temp | P/N |
|---|---|---|
|
16GB |
-40°C～85°C | SP016GIMDC505SW0 |
| 32GB | -40°C～85°C | SP032GIMDC505SW0 |
| 64GB | -40°C～85°C | SP064GIMDC505SW0 |
| 128GB | -40°C～85°C | SP128GIMDC505SW0 |
| 256GB | -40°C～85°C | SP256GIMDC505SW0 |
| 512GB | -40°C～85°C | SP512GIMDC505SW0 |
