仕様
Overview
Interface
SATA III/6.0Gbps
Flash Technology
3D TLC
Capacity
64GB～1TB
Form Factor
M.2 2242 (B+M key)
Dimensions
42.0 x 22.0 x 3.5 mm
DRAM
Yes
Performance
Seq. Performance Read (max.)
520 MB/s
Seq. Performance Write (max.)
400 MB/s
Random 4K Read (IOPS max.)
29,000
Random 4K Write (IOPS max.)
26,000
MTBF @ 25°C
>3,000,000 hrs
P/E Cycle
30,000/3,000
TBW
1TB: 2,743 TB
512GB: 1,372 TB
256GB: 686 TB
128GB: 343 TB
64GB: 176 TB
512GB: 1,372 TB
256GB: 686 TB
128GB: 343 TB
64GB: 176 TB
Operating Environment
Operating Temperature
-40°C～85°C / -20°C～75°C
Storage Temperature
-55°C～95°C
Operating Humidity
10%～95%
(30°C Max. Wet Bulb Temp)
(30°C Max. Wet Bulb Temp)
Vibration
20G, 10～2000Hz
Drop
75cm
Shock
1,500G@0.5ms
Power Consumption
Power Requirement
DC 3.3V
Power Operation (max.)
520 mA
Power Idle / Standby
160 mA
Key Features
Advanced Power Shield
●
End-to-End Data Protection
◎
TCG Opal 2.0
◎
AES-256
◎
Thermal Throttling
●
DEVSLP
●
S.M.A.R.T
●
Warranty
Warranty
3 years within TBW
ORDER INFORMATION
| Capacity | Temp | P/N |
|---|---|---|
| 1TB | -20～75°C | SP010TIMDA355SV0 |

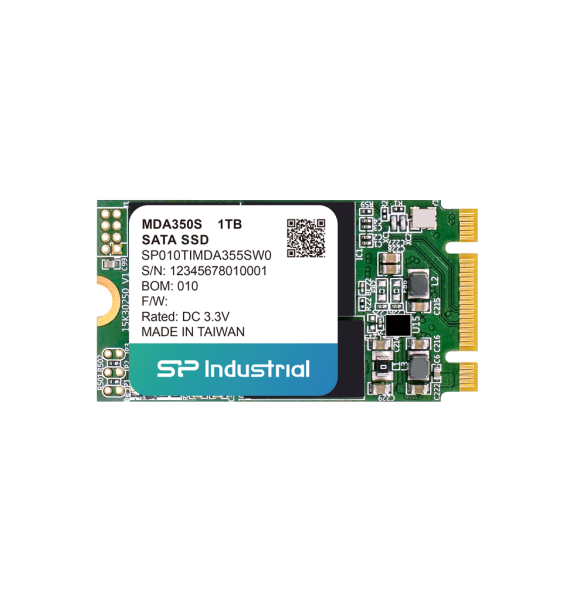

| 1TB | -40 ~ 85℃ | SP010TIMDA355SW0 |
| 32GB | -20～75°C | SP032GIMDA355SV0 |
| 64GB | -20～75°C | SP064GIMDA355SV0 |
| 128GB | -20～75°C | SP128GIMDA355SV0 |
| 128GB | -40 ~ 85℃ | SP128GIMDA355SW0 |
| 256GB | -20～75°C | SP256GIMDA355SV0 |
| 256GB | -40 ~ 85℃ | SP256GIMDA355SW0 |
| 512GB | -20～75°C | SP512GIMDA355SV0 |
| 512GB | -40 ~ 85℃ | SP512GIMDA355SW0 |
