사양
Overview
Interface
eMMC 5.1
Bus Width
1-bit, 4-bit, 8-bit
Flash Technology
pSLC (3D TLC)
ECC Performance
LDPC
Capacity
16GB
Package
BGA153
Dimensions
11.5 x 13.0 x 1.0 mm
Performance
Seq. Performance Read(max.)
250 MB/s
Seq. Performance Write(max.)
230 MB/s
P/E Cycle
30,000
TBW
16GB: 200TB
Operating Environment
Operating Temperature (Ta)
-25°C～85°C
Storage Temperature
-40°C～85°C
Power Consumption(ICC / ICCQ)
Power Consumption (max.)
65 / 85 mA
Power Consumption(Standby)
20 / 150 µA
Key Features
S.M.A.R.T.
●
RPMB
●
PSA
●
Command Queue
●
Wear Leveling
●
Bad Block Management
●
Garbage Collection
●
Warranty
Warranty
1 years within TBW
ORDER INFORMATION
| Capacity | Temp | P/N |
|---|---|---|

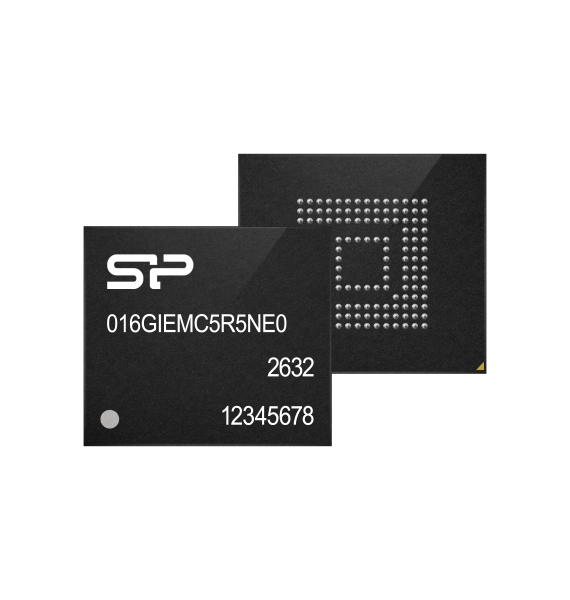

| 16GB | -25°C ~ 85°C | SP016GIEMC5R5NE0 |
