Overcoming Read Disturbance: How Our SSDs Keep Digital Signage Running Smoothly

Overcoming Read Disturbance: How Our SSDs Keep Digital Signage Running Smoothly

Application Areas/Regions	Digital Signage

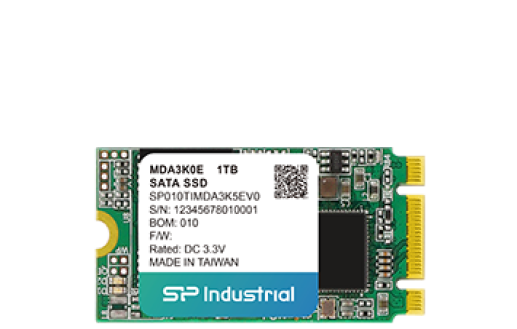

Solution	MDA3K5 series M.2 2242 SATA SSD, available in various capacities
Result	The SSD delivers exceptional read stability and data integrity, effectively resolving read disturbance issues and ensuring reliable playback in digital signage and other critical applications.



Challenges

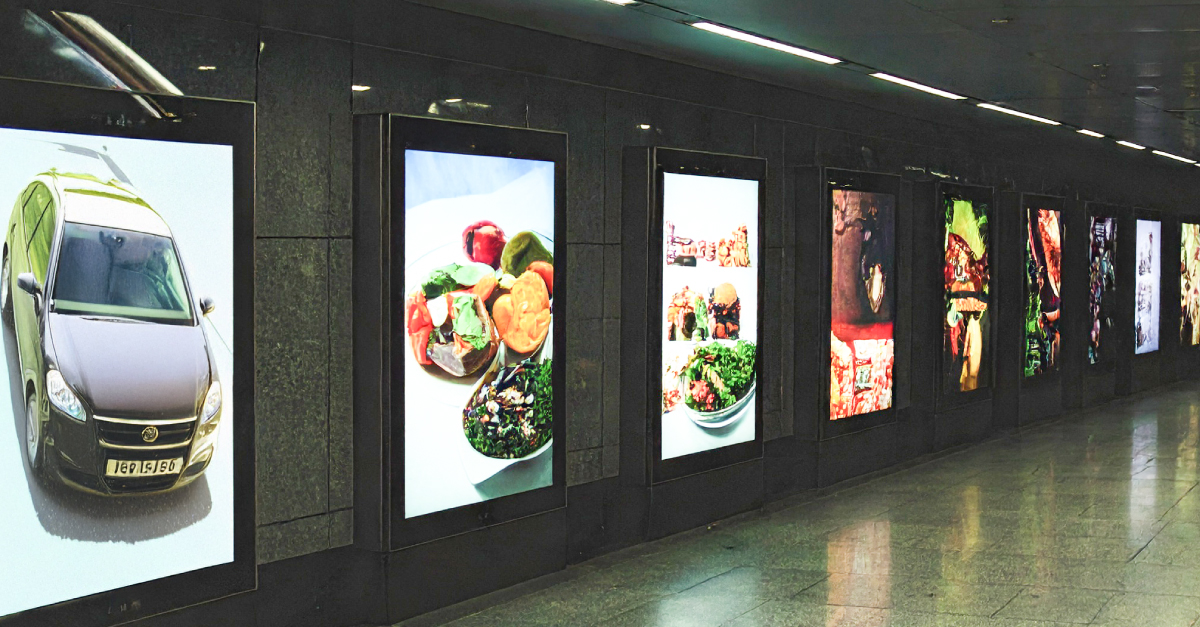

With the growing presence of digital signage in public areas—particularly lightbox display systems in metro stations—businesses are increasingly relying on high-resolution video for advertising and public messaging. These systems typically store media locally and play it on a continuous loop. SSDs are commonly used for such applications, but they often face a unique challenge: a "read-heavy, write-light" workload where data is read far more frequently than it's written.

Under prolonged read conditions, traditional SSDs are prone to a phenomenon known as read disturbance—a form of data corruption caused by excessive read operations. For digital signage, even minor playback disruptions can negatively impact messaging and viewer experience. To avoid these issues, system integrators require highly stable storage solutions designed to withstand intense, sustained read activity.



Customer Requirements

The customer, a provider of integrated digital signage systems for metro stations, faced ongoing problems with their existing SSDs. Repeated playback of preloaded content led to frequent read errors, disrupting display operation and increasing system downtime. Their key requirements included:



High Stability and Endurance

The SSD needed to withstand non-stop, long-term read operations without degradation or failure.



Data Integrity

Content had to remain intact and fully accessible, even after continuous use, to ensure smooth and uninterrupted playback.



Consistent Read Performance

The system needed real-time, reliable read speeds to deliver seamless video output and maintain high-quality visuals.



Solution and Technology

To address these challenges, we implemented targeted technical enhancements focused on optimizing SSD performance in read-intensive scenarios:



Firmware Optimization for Read-Heavy Workloads

We fine-tuned the SSD’s firmware to better manage data relocation and garbage collection, minimizing the wear caused by repeated read operations. In extended testing, our SSDs showed no signs of read-related errors—unlike competitor drives that suffered from corruption and playback issues.



Consistent, Long-Term Read Stability

Customized parameter tuning allowed our SSDs to maintain steady read speeds over extended use. Even in stress test environments simulating metro display usage, our solution outperformed competing SSDs that struggled with inconsistent performance and intermittent failures.



Advanced Data Protection

Integrated protection mechanisms ensured data integrity even under high read loads. These safeguards prevented corruption, maintained playback accuracy, and significantly reduced the risk of data loss in high-availability environments.



With these enhancements, our SSDs demonstrated outstanding reliability and read performance in real-world conditions. This made them the ideal solution for digital signage and other read-intensive applications.



Application

While the primary use case centered on metro station lightbox displays, the optimized SSDs have also proven highly effective in a variety of other read-intensive environments. For instance, they are well-suited for casino gaming machines and informational kiosks, where systems must run continuously and deliver reliable media playback. These scenarios demand consistent, high-speed data access to ensure a smooth user experience.



Additionally, smart law enforcement equipment benefits greatly from this solution, especially in applications involving long-term data acquisition and analysis. In these high-reliability scenarios, the ability to maintain stable read performance without degradation is essential. As the demand for "read-heavy, write-light" systems grows across industries, our enhanced SSD solutions are poised to meet the challenge—offering reliable, high-stability data storage for a wide range of mission-critical applications.
