SPECIFICATIONS
Overview
DRAM Type
DDR3L
Capacity
8GB, 4GB, 2GB
Data Rate
1866 /1600 MT/s
CAS Latency
CL13/CL11
Voltage
1.35V
Pin Count
240pin
Data Width
64Bits
PCB Height
1.2" (30.50mm)
Operating Environment
Operating Temperature
-40°C～105°C / -20°C～95°C
Storage Temperature
-55°C～110°C
Operating Humidity
10%～95%
(30°C Max. Wet Bulb Temp)
(30°C Max. Wet Bulb Temp)
Warranty
Warranty
Limited lifetime
ORDER INFORMATION
| Capacity | Temp | P/N |
|---|---|---|
| 2GB(256Mx8) | -20°C ~95°C | SP002GILLU160VS0 |
| 2GB (256Mx16) | -20°C ~95°C | SP002GILLU160WH0 |
| 4GB | -20°C ~95°C | SP004GILLU160NH0 |
| 4GB | -20°C ~95°C | SP004GILLU160NM0 |

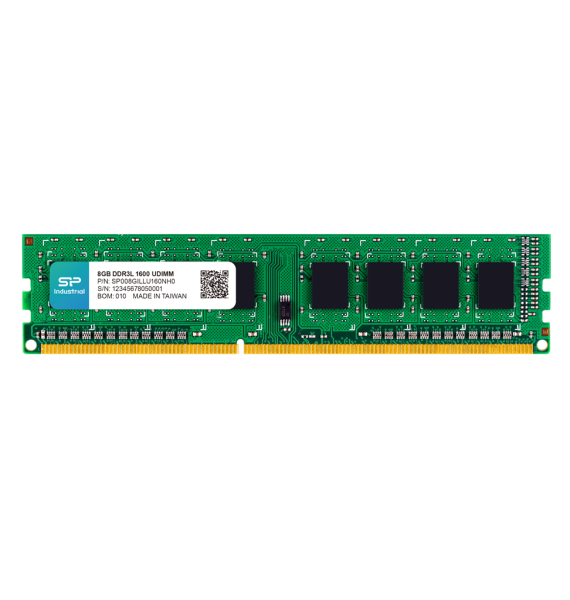

| 8GB | -20°C ~95°C | SP008GILLU160NH0 |
