SPECIFICATIONS
Overview
DRAM Type
DDR3L
Capacity
8GB, 4GB, 2GB
Data Rate
1866 /1600 MT/s
CAS Latency
CL13/CL11
Voltage
1.35V
Pin Count
204pin
Data Width
64Bits
PCB Height
1.2" (30.15mm)
Operating Environment
Operating Temperature
-40°C～105°C / -20°C～95°C
Storage Temperature
-55°C～110°C
Operating Humidity
10%～95%
(30°C Max. Wet Bulb Temp)
(30°C Max. Wet Bulb Temp)
Warranty
Warranty
Limited lifetime
ORDER INFORMATION
| Capacity | Temp | P/N |
|---|---|---|
| 2GB | -20°C～95°C | SP002GISLU186VH0 |
| 2GB | -20°C～95°C | SP002GISLU186WM0 |
| 4GB | -20°C～95°C | SP004GISLU186NH0 |
| 4GB | -20°C～95°C | SP004GISLU186NM0 |

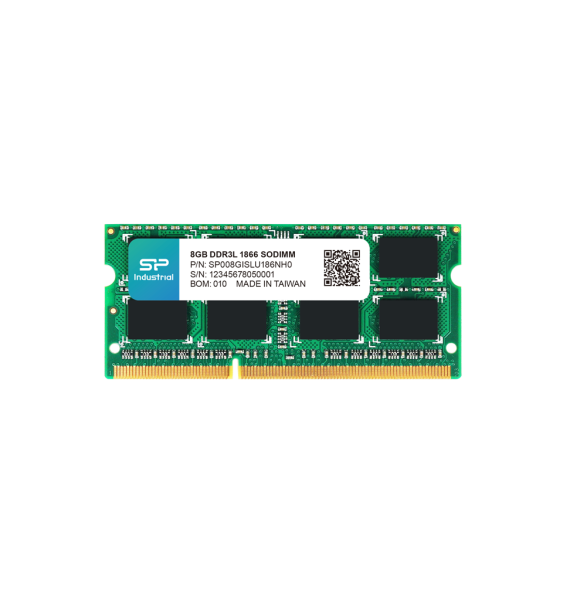

| 8GB | -20°C～95°C | SP008GISLU186NH0 |
| 8GB | -20°C～95°C | SP008GISLU186NM0 |
| 4GB | -40°C~105°C | SP004GISLV186NH0 |
| 8GB |
-40°C~105°C
|
SP008GISLV186NH0 |
| 8GB | -40°C~105°C | SP008GISLV186NM0 |
| 2GB | -20°C～95°C | SP002GISLU160VH0 |
| 2GB | -20°C～95°C | SP002GISLU160WH0 |
| 2GB | -20°C～95°C | SP002GISLU160WM0 |
| 4GB | -20°C～95°C | SP004GISLU160NH0 |
| 4GB | -20°C～95°C | SP004GISLU160NM0 |
| 4GB | -20°C～95°C | SP004GISLU160VH0 |
| 8GB | -20°C～95°C | SP008GISLU160NH0 |
| 8GB | -20°C～95°C | SP008GISLU160NM0 |
| 2GB | -40°C~105°C | SP002GISLV160VH0 |
| 2GB | -40°C~105°C | SP002GISLV160WH0 |
| 4GB | -40°C~105°C | SP004GISLV160NH0 |
| 4GB | -40°C~105°C | SP004GISLV160NM0 |

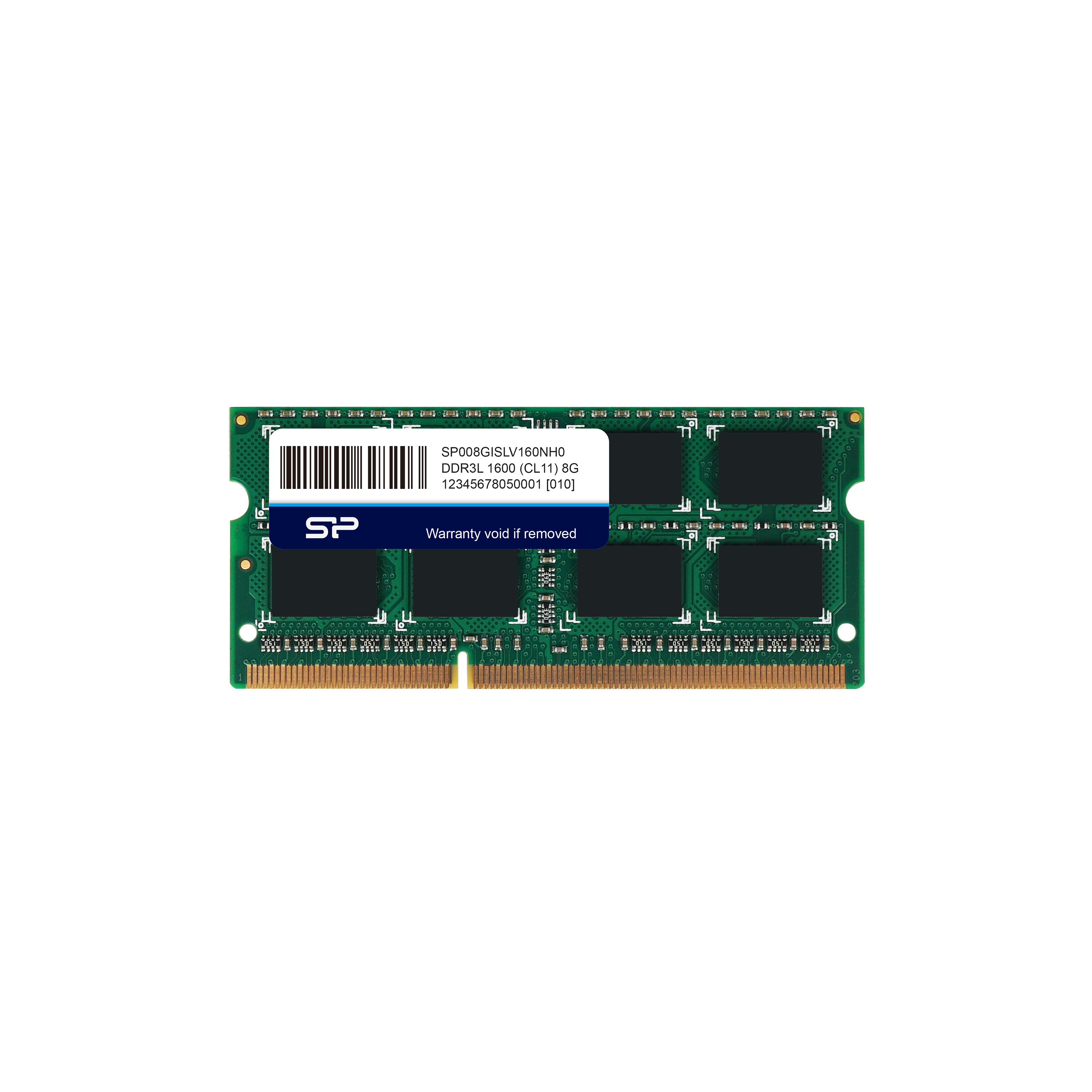

| 8GB | -40°C~105°C | SP008GISLV160NH0 |
| 8GB | -40°C~105°C | SP008GISLV160NM0 |
