SPECIFICATIONS
Overview
Interface
SATA III/6.0Gbps
Flash Technology
MLC
Capacity
32GB～1TB
Form Factor
M.2 2280 (B+M key)
Dimensions
80.0 x 22.0 x 3.5
External DRAM Buffer
Yes
Performance
Seq. Performance Read (max.)
560 MB/s
Seq. Performance Write (max.)
400 MB/s
Random 4K Read (IOPS max.)
74,000
Random 4K Write (IOPS max.)
79,000
MTBF @ 25°C
>3,000,000 hrs
P/E Cycle
3,000
TBW
1TB: 2,761 TB
512GB: 1,380TB
256GB: 690 TB
128GB: 345 TB
64GB: 173 TB
32GB: 84 TB
512GB: 1,380TB
256GB: 690 TB
128GB: 345 TB
64GB: 173 TB
32GB: 84 TB
Operating Environment
Operating Temperature
-40°C～85°C
Storage Temperature
-55°C～95°C
Operating Humidity
10%～95%
(30°C Max. Wet Bulb Temp)
(30°C Max. Wet Bulb Temp)
Vibration
20G, 10～2000Hz
Drop
75cm
Shock
1,500G@0.5ms
Power Consumption
Power Requirement
DC 5.0V
Power Operation (max.)
790 mA
Power Idle / Standby
90mA
Key Features
Power Failure Protection (PFP)
●
Advanced Power Shield
●
End-to-End Data Protection
●
AES-256
◎
Thermal Throttling
●
DEVSLP
●
S.M.A.R.T
●
Warranty
Warranty
3 years within TBW
ORDER INFORMATION
| Capacity | Temp | P/N |
|---|---|---|
| 32GB | -20～75°C | SP032GIMDC305SV0 |
| 64GB | -20～75°C | SP064GIMDC305SV0 |
| 128GB | -20～75°C | SP128GIMDC305SV0 |

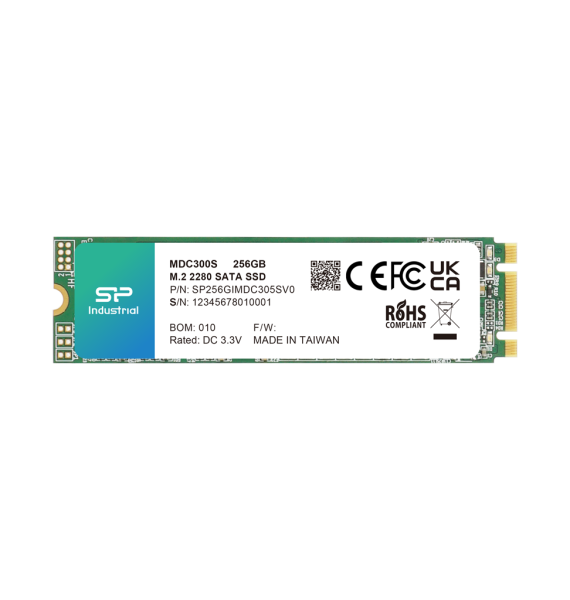

| 256GB | -20～75°C | SP256GIMDC305SV0 |
