SPECIFICATIONS
Overview
Interface
IDE 40PIN Vertical
Flash Technology
SLC
Capacity
128MB ~ 1GB
Form Factor

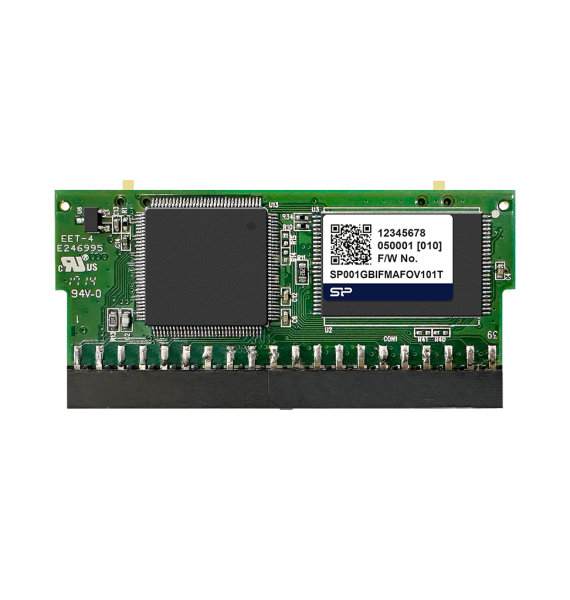

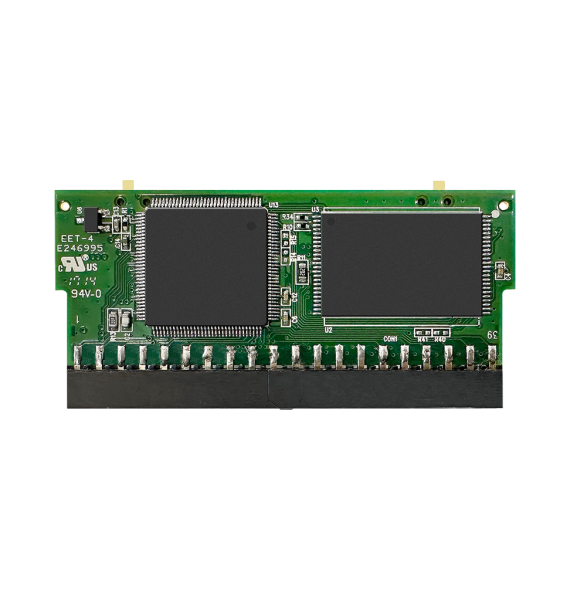

without housing
Dimensions
26.5 x 54 x 7.6 mm (without housing)
External DRAM Buffer
No
Performance
Seq. Performance Read (max.)
50 MB/s
Seq. Performance Write (max.)
40 MB/s
Random 4K Write (IOPS max.)
-
Random 4K Read (IOPS max.)
-
MTBF @ 25°C
>3,000,000 hrs
P/E Cycle
60,000
TBW
-
Operating Environment
Operating Temperature
0°C ～ 70°C/ -40°C ～ 85°C
Storage Temperature
-55°C ～ 95°C
Operating Humidity
10% ～ 95%
(30°C Max. Wet Bulb Temp)
(30°C Max. Wet Bulb Temp)
Vibration
15G, 10 ～ 2000Hz
Drop
75cm
Shock
1,500G@0.5ms
Power Consumption
Power Requirement
DC 3.0V / 5.0V
Power Consumption (max.)
200 mA
Power Consumption (idle)
2 mA
Key Features
S.M.A.R.T
●
Write Protect
◎
Warranty
Warranty
5 years within TBW
ORDER INFORMATION
| Capacity | Temp | P/N |
|---|---|---|
| 128MB | 0°C ～ 70°C | SP128MBIFMAFOV111T |
| 256MB | 0°C ～ 70°C | SP256MBIFMAFOV111T |
| 512MB | 0°C ～ 70°C | SP512MBIFMAFOV111T |
| 1GB | 0°C ～ 70°C | SP001GBIFMAFOV111T |
